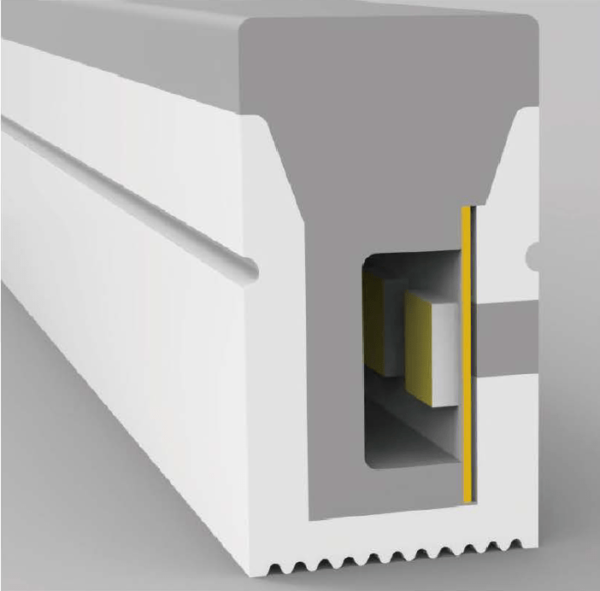

Silicone waterproof led strip lights SV1018S
Description
Waterproof LED Strip Lights silicone led channel system
Waterproof LED Strip Lights Silicone Led Channel System , also called Flexible Neon Led silicone tube Sleeve diffuser Rubber hose led Profile Channel. those items include the led strips inside.
Excellent for home and garden lighting decoration. Super Bright LED light running with Low Temperature. All the light spread and completely smooth, luminous very even.
Flexible, Slim, compact and flexible PCB strip.
Applicable for bendable or angled patterns, or in continuous rows,
Cuttable and linkable.
LED silicone extrusion light strip is a fully-wrapped light strip made of silicone material. The silicone and light strip are extruded together through an extruder at the same time.
Silicone extruded LED light strip is another important industry extension of silicone extruded products. LED silicone co-extruded light strip is a fully wrapped light strip made of silicone material, which is extruded together by silicone and light strip through an extruder.
Waterproof led strip lights Manufacture process:
Let’s take a look at how the silicone LED light strip is extruded:
① Raw rubber is smelted together with platinum vulcanizing agent, and after smelting, it will ‘meet’ with the light strip;
②Paint glue on the bare light bar and bake at low temperature;
③The baked light strip meets the refined rubber material and is extruded.
It should be noted that before rubber mixing, the treatment of platinum vulcanizing agent: the glue ratio should be accurate, and the error margin should not exceed 3%, and it should be stirred evenly after the ratio.
Flex LED Channel System Brief introduce:
Yiford Neon Flexible Silicone LED profile is used to a create a Neon lighting effect and indoor or outdoor accent lighting. It holds white or RGB/RGBW/RGBWW/RGBIC flexible LED strips range 3mm to 30mm wide . Top View LED Neon Flexible Silicone LED Profile is made from high-quality Silicone.
Yiford Flex Silicone LED Profile is a great option for a NEON lighting effect. It can be used indoor or outdoor as accent lighting. It works great with Yiford LED Strips including White, Red, Green, Blue, RGB, RGBW, RGBWW, RGBIC, and many more options available.
LED neon strip light silicone sleeve Application:
widely used in the LED flexible light strip industry, it is extruded with a unique process, with soft luminescence, no light spots, waterproof, protective, non-toxic, and odorless.
Long-term use does not change yellow or Embrittlement, no cracking; and has the characteristics of ozone resistance.
Silicone LED Channel System Features:
1. The waterproof led strip lights with silicone sleeve, wideth from 3mm~30mm flexible led strip lights.
2. Soft, good elasticity, resistance to kink and no deformation;
3. Wear resistance, stamping resistance, acid and alkali resistance, no cracking, cold and high-temperature resistance;
4. Anti-aging, with higher tear strength and superior electrical properties;
5. Light transmittance ≥70%, no yellowing, no blooming, no whitening, no fading when placed at room temperature,
6. After lighting, there is no spot, no brittleness, no cracking.
waterproof led strip lights led channel system Video:
waterproof led strip lights LED Channel System Catalogue:
Silicone led channel system all in one
Waterproof LED Strips All In One Neon Rope Lighting
Waterproof LED Strips All In One Neon Rope Lights
Silicone LED Channel System Item List:
Divided Into Several Types：
Topview, Sideview, With Fringe, Round, U Shape Half Cover, Black Sleeve, All In One
| Part Number | Section Size mm | Lighting Direction | PCB Width mm | Picture | Size Drawing | Refer Apply |
|---|---|---|---|---|---|---|
| YF-TVD13 | round dia 13 | round | 5 |  |  |  |
| YF-TVD20 | round dia 20 | round | 10 |  |  |  |
| YF-TVD22H | round dia 20 | round | Double side 8 |  |  |  |
| YF-TVD40 | round dia 40 | round | Double side 10 |  |  |  |
| YF-SV0308 | 3*8 | Sideview | 5 |  |  |  |
| YF-SV0410 | 4*10 | Sideview | 5/6 |  |  |  |
| YF-SV0612 | 6*12 | Sideview | 8 |  |  |  |
| YF-SV0612H | 6*12 | Sideview | 8 |  |  | |
| YF-SV0616H2 | 6*12 | Sideview | 8 |  |  |  |
| YF-SV0616H3 | 6*16 | Sideview | 8 |  |  | |
| YF-SV0815 | 8*15 | Sideview | 5 |  |  |  |
| YF-SV0817 | 8*17 | Sideview | 8 |  |  |  |
| YF-SV1018 | 10*18 | Sideview | 10 |  |  |  |
| YF-SV1023 | 10*23 | Sideview | 10 |  |  |  |
| YF-SV1023H | 10*23 | Sideview | 10 |  |  |  |
| YF-SV1212 | 12*12 | Sideview | 8 |  |  |  |
| YF-SV1220 | 12*20 | Sideview | 10 |  |  |  |
| YF-SV1220B | 12*20 | Sideview | 10 |  |  |  |
| YF-SV1220C | 10*20 | Sideview | 10 |  |  |  |
| YF-SV1220H | 10*20 | Sideview | 10 |  |  |  |
| YF-SV1225 | 12*25 | Sideview | 12 |  |  |  |
| YF-SV0613 | 6*13 | Sideview | 8 |  |  |  |
| YF-SV1616 | 16*16 | Sideview | 10 |  |  |  |
| YF-SV2020 | 20*20 | Sideview | 10/12 |  |  |  |
| YF-SV3020 | 30*20 | Sideview | 15 |  |  |  |
| YF-SVD22 | round dia 22 | Sideview | Double side 5 |  |  |  |
| YF-SVD22B | round dia 22 | Sideview | Double side 8 |  | |  |
| YF-TV0606 | 6*6 | Sideview | 3 |  |  |  |
| YF-TV1010 | 10*10 | Topview | 5 |  |  |  |
| YF-TV1010C | 10*10 | Topview | 6 |  |  |  |
| YF-TV1010H | 10*10 | Topview | 6 |  |  | |
| YF-TV1010U | 10*10 | Topview | 5 |  |  |  |
| YF-TV1105 | 11*5 | Topview | 8 |  | |  |
| YF-TV1212 | 12*12 | Topview | 8 |  |  |  |
| YF-TV1212C | 12*12 | Topview | 8 |  |  |  |
| YF-TV1212H | 12*12 | Topview | 8 |  |  |  |
| YF-TV1305H | 13*5 | Topview | 10 |  |  |  |
| YF-TV1505 | 15*5 | Topview | 12 |  | |  |
| YF-TV1513 | 15*13 | Topview | 10 |  |  |  |
| YF-TV1525 | 15*25 | Topview | 10 |  |  |  |
| YF-TV1616 | 16*16 | Topview | 10 |  |  |  |
| YF-TV1616H | 16*16 | Topview | 10 |  |  | |
| YF-TV1616H3 | 16*16 | Topview | 10 |  |  | |
| YF-TV1616U | 16*16 | Topview | 10 |  |  |  |
| YF-TV1620 | 16*20 | Topview | 12 |  |  |  |
| YF-TV1723 | 17*23 | Topview | 10 |  |  |  |
| YF-TV2010U | 20*10 | Topview | 10/12 |  |  |  |
| YF-TV2014 | 20*14 | Topview | 10 |  |  |  |
| YF-TV2014C | 20*14 | Topview | 10 |  |  | |
| YF-TV2016 | 20*16 | Topview | 10 |  |  |  |
| YF-TV2018U | 20*18 | Topview | 10 |  |  | |
| YF-TV2020 | 20*20 | Topview | 10/12 |  |  |  |
| YF-TV2020H | 20*20 | Topview | 10/12 |  |  |  |
| YF-TV2020U | 20*20 | Topview | 10/12 |  |  |  |
| YF-TV2020U2 | 20*20 | Topview | 10/12 |  |  |  |
| YF-TV2020U3 | 20*20 | Topview | 12 |  |  | |
| YF-TV3020 | 30*20 | Topview | 15 |  |  |  |
| YF-TV3020U | 30*20 | Topview | 15 |  |  |  |
| YF-TV3020U2 | 30*20 | Topview | 15 |  |  |  |
| YF-TV4015U | 40*15 | Topview | 15/20 |  |  |  |
| YF-TV4025 | 40*25 | Topview | Topview 20/sideview 8 |  |  | |
| YF-TV5015U | 50*15 | Topview | 15/20 |  |  |  |
| YF-TV5025 | 50*25 | Topview | 20 |  |  |  |
| YF-TV7030 | 70*30 | Topview | 30 |  |  |  |
| YF-TV10030 | 100*30 | Topview | 20*2 |  |  |  |
| YF-TVV22 | V corner 22*22 | V corner | 5 |  |  |  |
