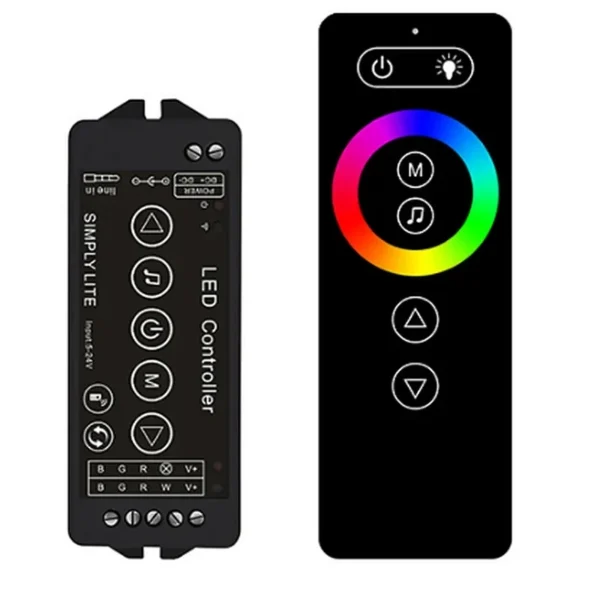

RGB RGBW controller for led lights
Description
RGB RGBW controller for led lights
Technical parameters
| Working temperature | -20-60℃ |
| Supply voltage | DC5V-24V |
| Output | 3 channels / 4 channels |
| Connection mode | common anode |
| Controller dimension | L113.5×W42×H23mm |
| Remote control dimension | L47×W133×H8mm |
| Packing size | L200×W132×H28mm |
| Net weight | 110g |
| Gross weight | 164.4g |
| Static power consumption | <0.5W |
| Output current | <6A (each channel) |
| 3 channels maximum output power | 5V< 90W,12V < 216W, 24V <432W |
| 4 channels maximum output power | 5V< 120W,12V < 288W, 24V <576W |
Interface Description
Instructions for use
1. Remote control Description
- Working signal indicator
- White color 100% brightness
- On/off
- Built-in mode
- Touch color ring 6.Music mode+/-
- Brightness / Speed+
- Brightness / Speed-
- USB charging interface
2. Controller Description
- 3.5mm Audio input
- Power input 1 (power adapter)
- Power input 2 (Terminals)
- Power Indicator
- Working signal indicator
- RGB mode indicator
- RGBW mode indicator
- Load output
- Brightness / Speed-
- Music mode button
- On/off
- Built-in mode
- Brightness / Speed+
- Match code button
- Load output select button RGB/RGBW
3. Built-in modes as the following table
No. | Mode | No. | Mode |
| Common mode (Speed is adjustable) |
| Music mode |
1-7 | Red / Green / Blue / Yellow / Purple / Cyan / White | 1-7 | Red / Green / Blue / Yellow / Purple / Cyan / White |
8 | R,G,B jumpy changing | 8 | R,G,B jumpy changing |
9 | 7 colors jumpy changing | 9 | 7 colors jumpy changing |
10 | R,G,B gradual changing | 10 | R,G,B gradual changing |
11 | Red / Green / Blue / Yellow / Purple / Cyan / White flicker | 11 | Red / Green / Blue / Yellow / Purple / Cyan / White flicker |
12 | Red / Green / Blue / Yellow / Purple / Cyan / White fading bright and fading dark | 12 | Red / Green / Blue / Yellow / Purple / Cyan / White fading bright and fading dark |
13 | R,G,B breathing changing | 13 | R,G,B breathing changing |
14 | 7 colors breathing changing | 14 | 7 colors breathing changing |
15 | R/G, R/B, G/B breathing changing | 15 | R/G, R/B, G/B breathing changing |
Typical Application
led controller for led lights,led controller,rgb controller,led light controller,rgb led controller, rechargeable remote led rgb rgbw audio controller.
