what is led controller?

LED controllers, also called LED light controller, are the necessary parts to achieve remote control the lighting effects for LED strip and LED lights, including adjust brightness level, select color, and switch color-changing modes. We sell a large selection of LED controllers, including RF, Bluetooth, WiFi, multi zone LED strip light controller, and DMX LED controller. LED controllers also vary due to the different light fixtures controlled. For example, LED strip controllers have tunable white, RGB, and RGBW controller. Their performance and installation are discussed in detail below, helping you choose a right LED light controller.

No.	Model	Description	Voltage	APP	Music	Remote	Button	DAT/CLK/PWM	Output	IC Type	Maxium Pixel
1	SP002E	Micro Simple 3 Buttons LED Controller	DC5V-24V	Non	Non	Non	3	DATA GND	1 Set TTL	One Wire IC	600
2	SP103E	14key Mini-RF Remote	DC5V/DC12V	Non	Non	14key RF	Non	DATA GND	1 Set TTL	One Wire IC	2048
3	SP104E	17key Mini-RF Remote	DC5V-24V	Non	Non	17key RF	Non	DATA GND	1 Set TTL	One Wire IC	2048
4	SP105E	BT App Controlled Pixel LED Controller	DC5V-24V		Non	Non	Non	CLK DATA GND	1 Set TTL	One/Two Wire IC	2048
5	SP106E	RF Remote Music LED Controller	DC5V-12V	Non	Onboard Mic	14key RF	Non	DATA GND	1 Set TTL	One Wire IC	600
6	SP107E	BT App Controlled Music Pixel LED Controller	DC5V-24V		Onboard Mic/AUX	Non	Non	CLK DATA GND	1 Set TTL	One/Two Wire IC	960
7	SP108E	WiFi App Controlled Pixel LED Controller	DC5V-24V		Non	Non	1	CLK DATA GND	1 Set TTL	One/Two Wire IC	2048

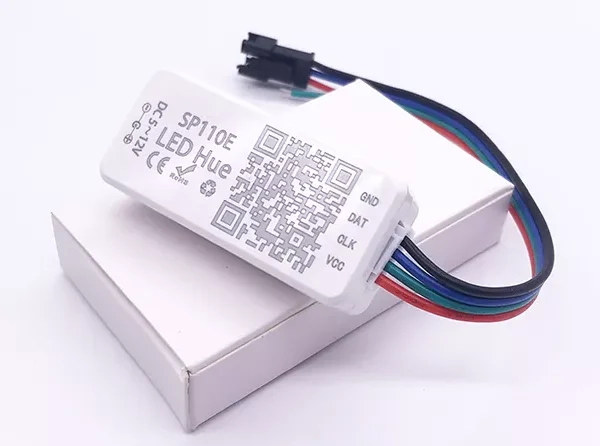

8	SP110E	BT App Controlled Pixel LED Controller	DC5V-24V		Non	Non	Non	CLK DATA GND	1 Set TTL	One/Two Wire IC	1024
9	SP201E	DMX512 Decoder	DC5V-24V	Non	Non	Non	3	CLK DATA GND + 5*PWM	1 Set TTL + 5*PWM	One/Two Wire IC + PWM	2000 Channels
10	SP511E	IoT WiFi App Controlled Pixel LED Controller	DC5V-24V		Onboard Mic	38key IF	3	DATA GND	1 Set TTL	One Wire IC	900
11	SP513E	IoT WiFi App Controlled RGB LED Controller	DC5V-24V		Onboard Mic	38key IF	3	RGB	3*PWM	PWM	/
12	SP514E	IoT WiFi App Controlled RGBW LED Controller	DC5V-24V		Onboard Mic	38key IF	3	RGBW	4*PWM	PWM	/
13	SP601E	BT App Controlled 2 Output Music Pixel LED Controller	DC5V-24V		Onboard Mic	16key RF	3	2*DATA GND	2 Set TTL	One Wire IC	600*2
14	SP602E	BT App Controlled 4 Output Music Pixel LED Controller	DC5V-24V		Onboard Mic/AUX	16key RF	3	4*DATA GND	4 Set TTL	One Wire IC	600*4

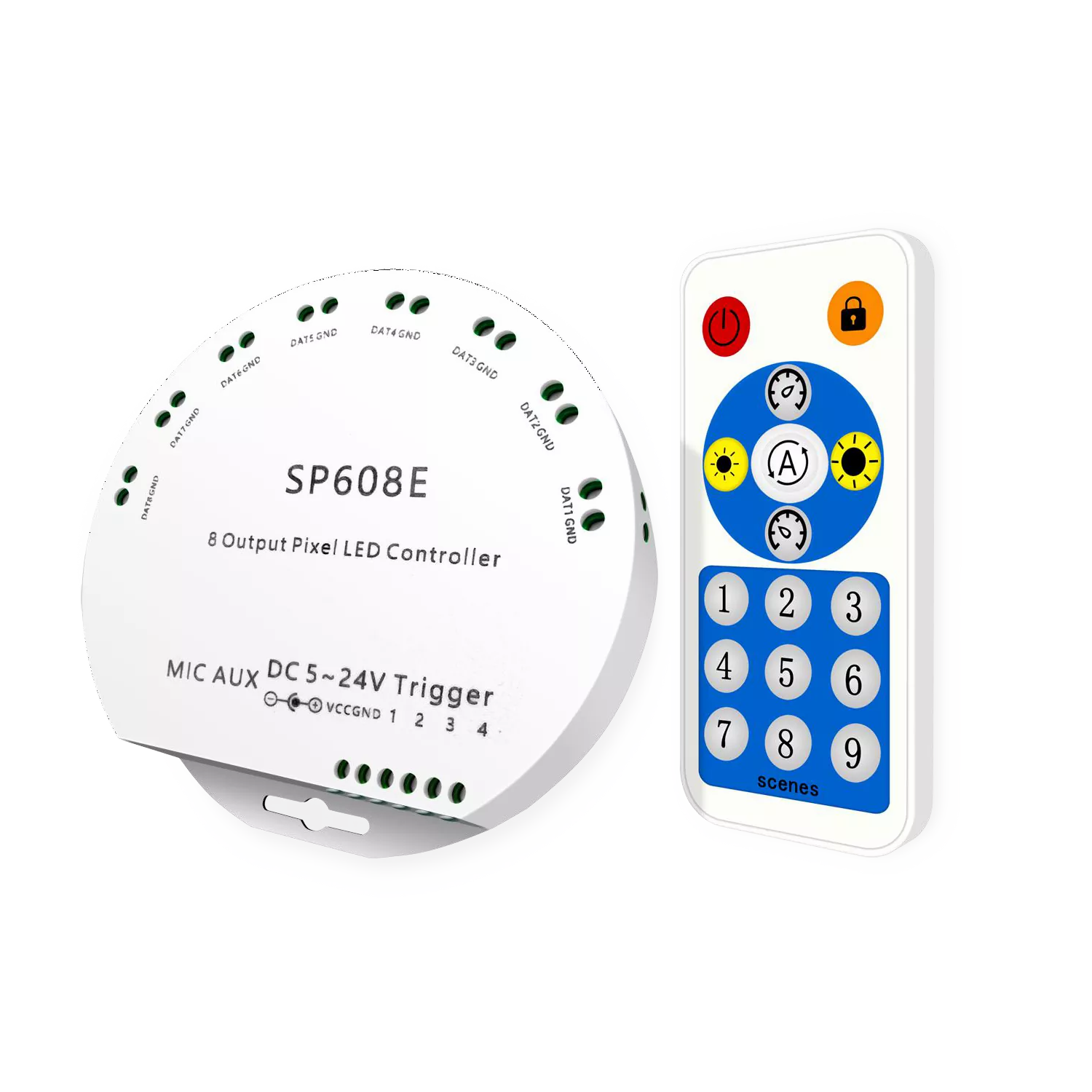

15	SP608E	BT App Controlled 8 Output Music Pixel LED Controller	DC5V-24V		Onboard Mic/AUX	16key RF	Non	8*DATA GND	8 Set TTL	One Wire IC	600*8
16	SP611E	BT App Controlled Music Pixel LED Controller	DC5V-24V		Onboard&Phone Mic /Streaming	38key IF	3	DATA GND	1 Set TTL	One Wire IC	600

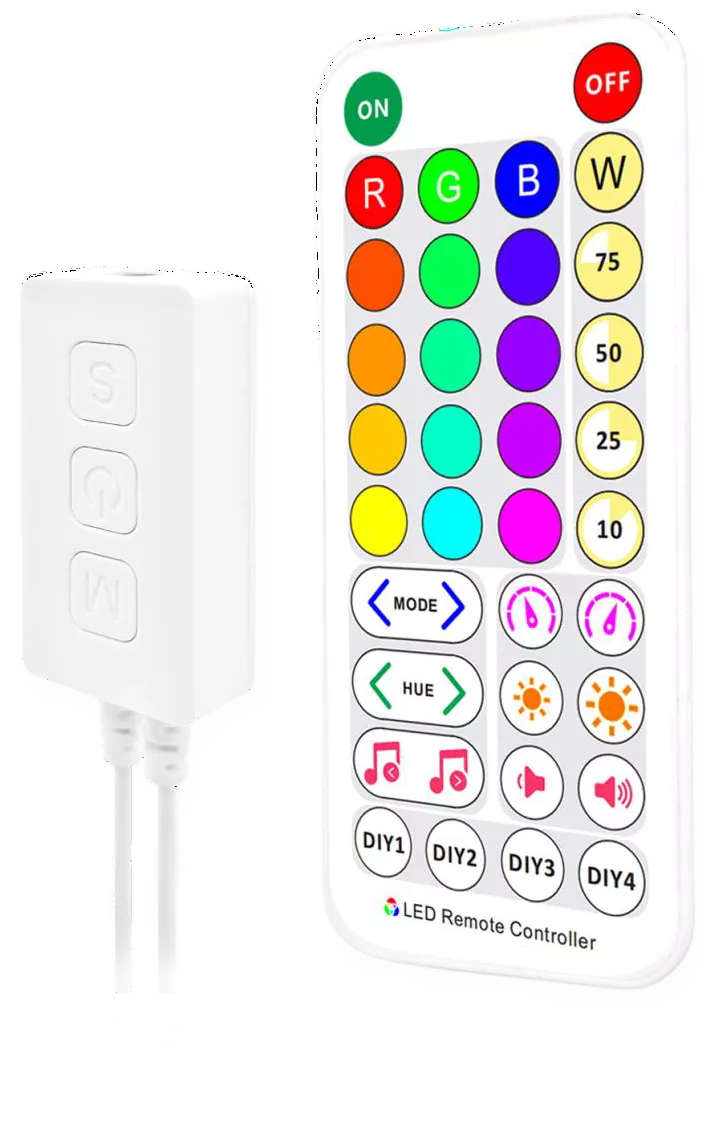

17	SP613E	BT App Controlled Music RGB LED Controller	DC5V-24V		Onboard&Phone Mic /Streaming	38key IF	3	RGB	3*PWM	PWM	/
18	SP614E	BT App Controlled Music RGBW LED Controller	DC5V-24V		Onboard&Phone Mic /Streaming	38key IF	3	RGBW	4*PWM	PWM	/

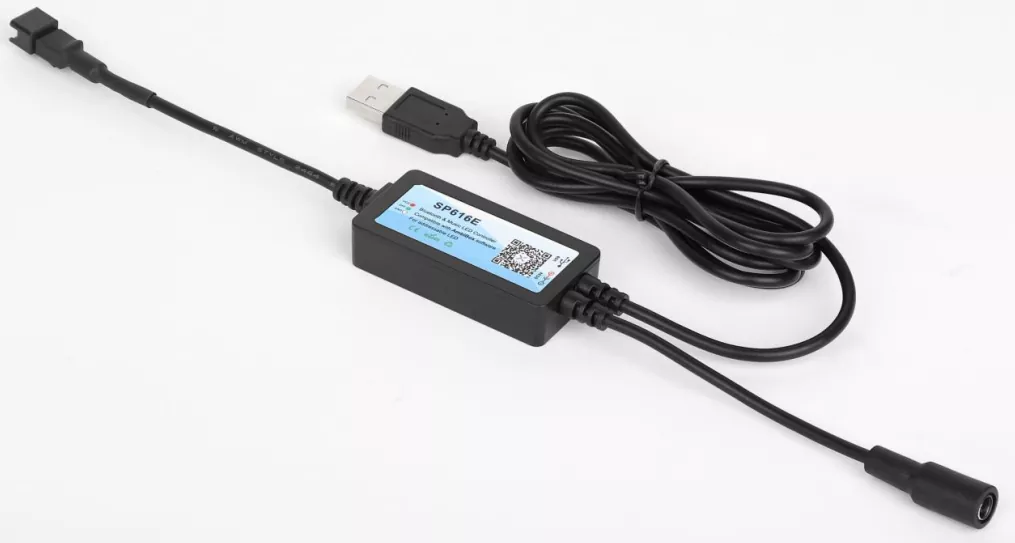

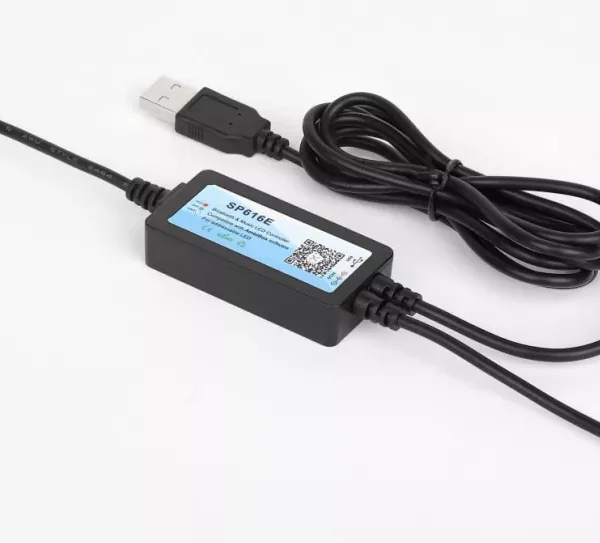

19	SP616E	BT App&AmbiBox Controlled Music Pixel LED Controller	DC5V		Onboard&Phone Mic /Streaming	Non	3	DATA GND	1 Set TTL	One Wire IC	600
20	SP617E	BT App&AmbiBox Controlled Music Pixel RGBW LED Controller	DC5V-24V		Onboard&Phone Mic /Streaming	38key IF	3	DATA GND	1 Set TTL	One Wire IC	600

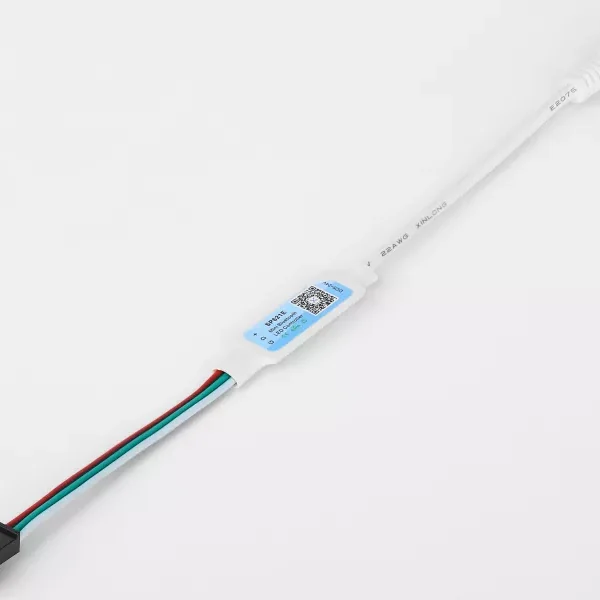

21	SP621E	Mini BT App Controlled Pixel LED Controller	DC5V-24V		Phone Mic /Streaming	Non	Non	DATA GND	1 Set TTL	One Wire IC	600
22	SP623E	Mini BT App Controlled Music RGB LED Controller	DC5V-24V		Phone Mic /Streaming	Non	Non	RGB	3*PWM	PWM	/
23	SP624E	Mini BT App Controlled Music RGBW LED Controller	DC5V-24V		Phone Mic /Streaming	Non	Non	RGBW	4*PWM	PWM	/
24	SP801E	WiFi ArtNet LED Controller	DC5V-24V		Non	Non	1	CLK DATA GND	4 Set TTL	One Wire IC	1024*4
25	SP901E	TTL Signal Amplifier	DC5V-24V	Non	Non	Non	Non	CLK DATA GND	4 Set TTL	Depends on input	Depends on input
